HZS25/35/50/75 Stationary Concrete Batching Plant
HZS25/35/50/75 Stationary Concrete Batching Plant
| Theoretical Productivity： | 25-75m3/h |
| Type | Skip Hoist Type |
| Mixer： | JS500/JS750/JS1000/JS1500 |
| Aggregate Batching Machine： | PLD800/PLD1200/PLD1600/PLD2400 |
E-mail: info@hf-industry.cn
Tel/WhatsApp: +8613663816343
Product detail

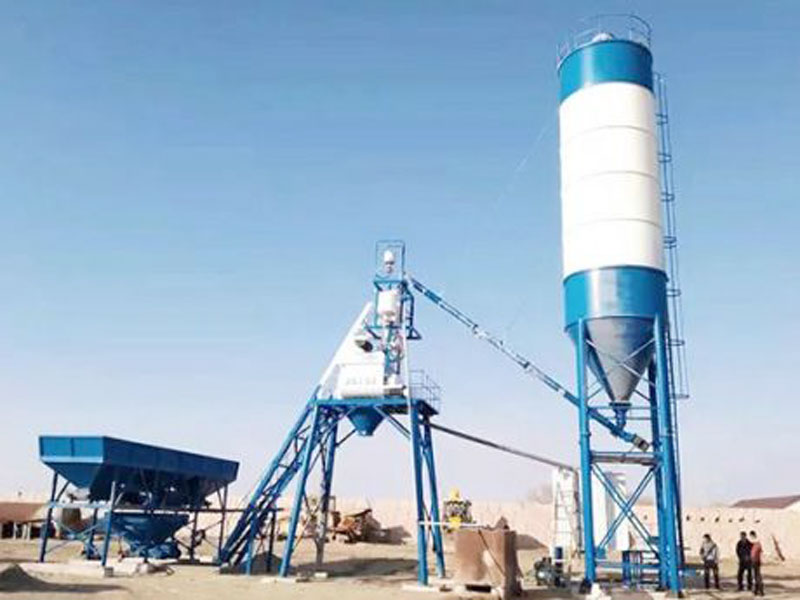

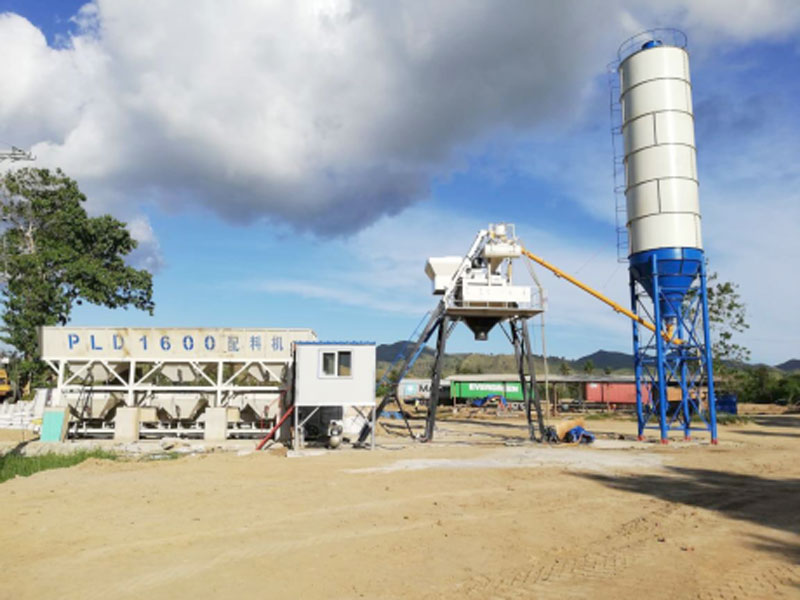

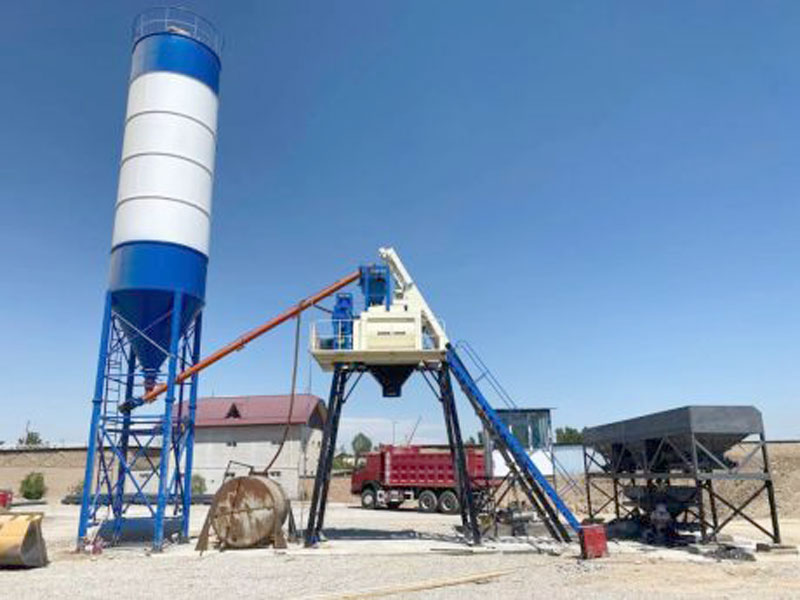

HZS25/35/50/75 Stationary Concrete Batching Plant
Main Specifications
| Model
|
Aggregates are conveyed into concrete mixer by skip hoist hopper | |||
| HZS25 | HZS35 | HZS50 | HZS75 | |
| Max. Production Capacity (m3/h) | 25 | 35 | 50 | 75 |
| Model of Concrete Mixer | JS500 | JS750 | JS1000 | JS1500 |
| Max. Aggregate Size(mm) | 60/80 | 60/80 | 60/80 | 60/80 |
| Aggregate Weighing Accuracy (%) | ± 2 | ± 2 | ± 2 | ± 2 |
| Cement Weighing Accuracy(%) | ± 1 | ± 1 | ± 1 | ± 1 |
| Water Weighing Accuracy(%) | ± 1 | ± 1 | ± 1 | ± 1 |
| Additive Weighing Accuracy (%) | ± 1 | ± 1 | ± 1 | ± 1 |
| Total Power (kw) | 35 | 50 | 60 | 85 |
| Total Weight (kg) | 14000 | 18000 | 25000 | 35000 |
Product Description
Brief introduction:
HZS25/35/50/75 is simple concrete batching plants with simple structure, convenient disassembly & installation, and quick construction. It can be used in various prefabricated component factories as well as industrial or civil construction projects such as roads, bridges, water conservancy, docks and so on.
The main engine of the mixing system adopts JS series twin-shaft forced mixer, which adopts the control technology of electronic weighing, microcomputer control, digital display and etc. The electronic weighing has buffer device and automatic compensation function. Also with high measurement precision. Sand and stone feeding system adopts herringbone belt feeding, equipped with maintenance walkway, which is an ideal choice for the majority of construction units to produce high quality concrete.
Advantages:
1. Quick installation
Steel girder type or fixed type can be selected. It only takes a few hours for the main mixing system of steel girder type mixing station to be unloaded and installed. Together with the control room, batching station and other supporting facilities of the installation of only two to four days can be ready for production.
2. Small area
Uses the method of hoisting and lifting hopper to feed. The hopper and track are specially designed to load and dump aggregate efficiently, greatly reducing the occupied area of the site.
3. Less investment and simple maintenance
Requires less investment, occupies less space, uses less equipment, maintains easily, and operates safely and conveniently.
4. Reasonable design
Mixing platform, measuring platform and lifting system platform fully guarantee the requirements of inspection and maintenance. Sufficient daily working space can be provided when outer protective layer is needed.
