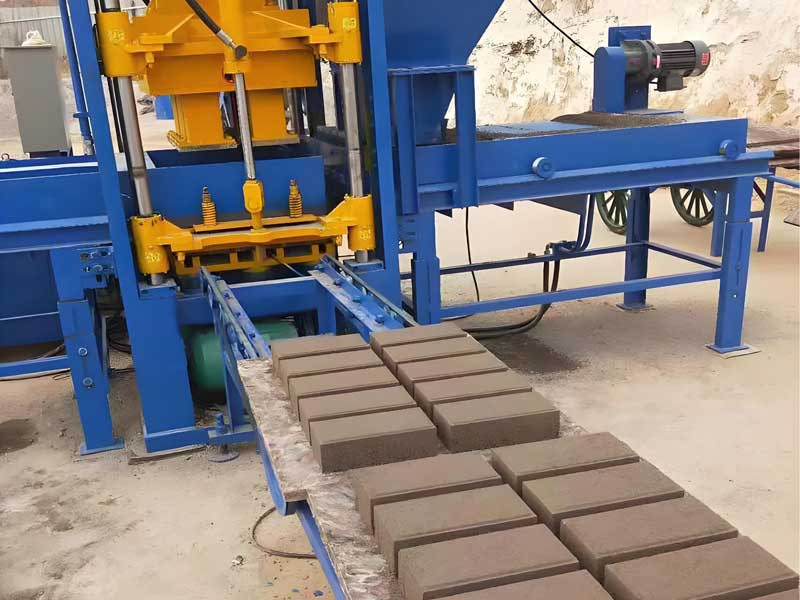

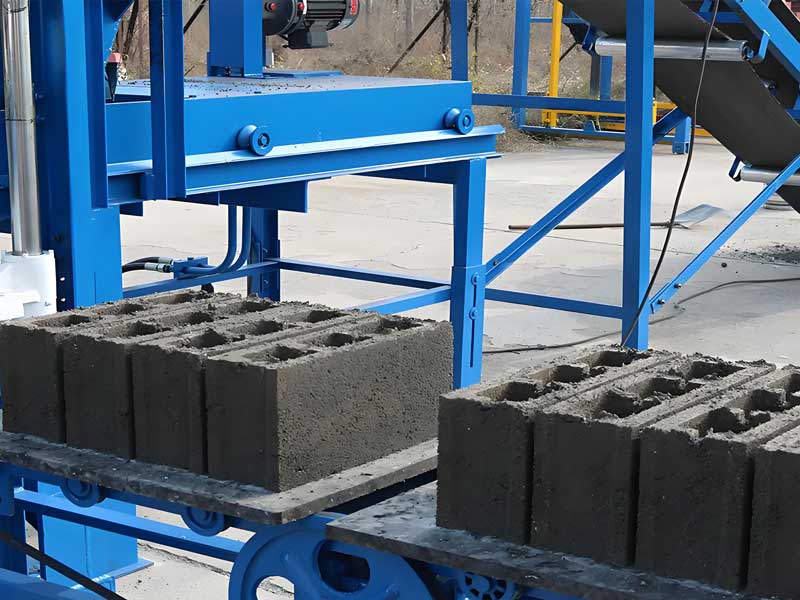

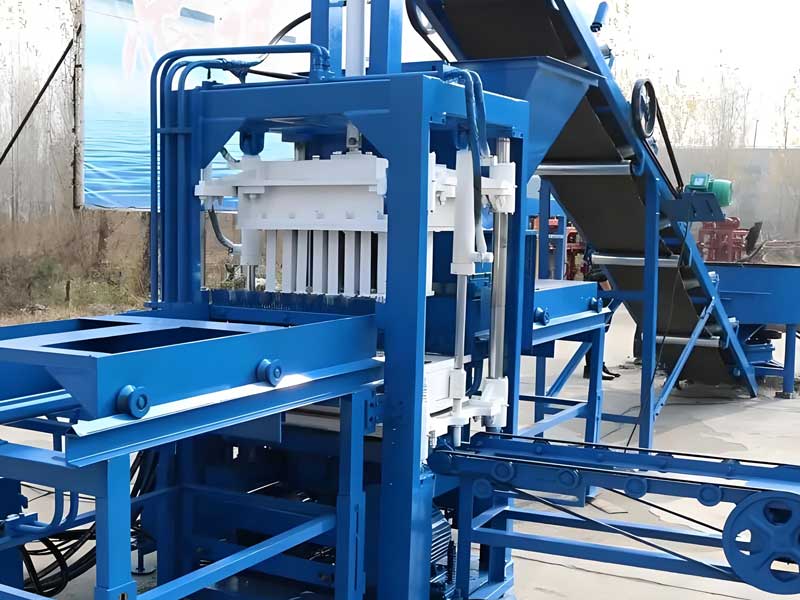

QTF3-20 Semi-automatic Hydraulic Block Making Machine

Blocks can be produced：	Hollow/Solid/Paving Blocks, Kerbstone, etc.
Cycle Time：	20-25s
Production Capacity (e.g.)：	400x200x200mm: 3600pcs/day(8 hours)
	400x150x200mm: 4800pcs/day(8 hours)
	400x100x200mm: 3000pcs/day(8 hours)
Control Mode：	Semi-automatic
Block Forming Mode：	Platform Vibration + Hydraulic Pressure

E-mail: info@hf-industry.cn

Tel/WhatsApp: +8613663816343

QTF3-20 Semi-automatic Hydraulic Block Making Machine

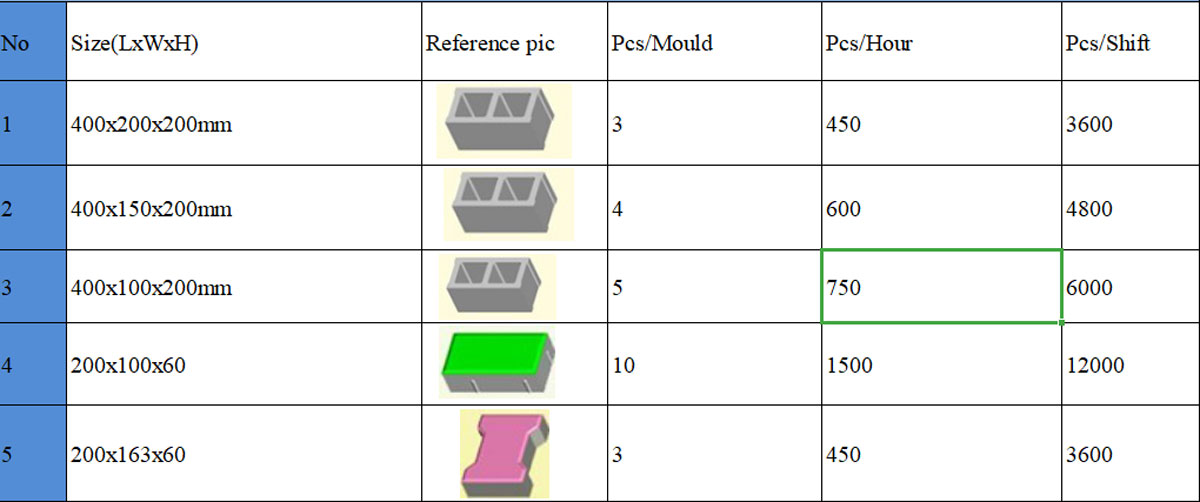

Production Capacity

Note: Block shapes and size can be customized

Product Features

QTF3-20 block making machine is designed according to domestic and foreign condition and customer’s feedback. It has high productivity, high quality and strong durability. It is suitable to produce many kinds of high intensity and environment-friendly brick, interlocking block, colored paving block, grass-planting brick in parking lot, hollow block, porous block, standard brick, insulation block and so on. The blocks made by QTF 3-20 have high compression strength, standard dimension, with beautiful appearance.

QTF3-20 block making machine is specially made for producing colored paving block, grass-planting block, slope protection brick and so on. It adopts hydraulic drive, non-contact approach switch monitoring, double layers (raw material and color material), automatically working. It combines mechanic, electricity, hydraulic and high frequency vibration technology together. The main electrical components and hydraulic components are all imported or adopt Chinese famous brand.

It has the features of compressing during vibrating, controlling both the height and density, high exciting force, compact structure, easy operation, convenient maintenance, reliable working, etc. Being equipped with one belt and a common mixer, it can make bricks. It is ideal environmental construction equipment.

Main Specifications

No.	Item	Specification
1	Block Forming Mode	Platform Vibration + Hydraulic Pressure
2	Vibration Force	50 Kn
3	Vibration Frequency	4500-5100 rpm
4	Rated Pressure	16-20 Mpa
5	Production Cycle Time	20-25 seconds
6	Main Motors Power	16.45 kw
7	Pallet Size	700x550 mm
8	Main Machine Size	4000×3500×2300 mm
9	Main Machine Weight	3000 kg
10	Blocks can be produced	Hollow/Porous/Solid/Paving/Grass-planting Block, Kerbstone, etc.

Technology Advantage

High Strength Structural Steel

To produce our machines, we use high-strength structural steel. Steel rank can be Q345 – 16Mn.

Top Brands Parts

If some parts need to be ordered from others, we must choose top brands to keep quality.

Production Equipment

We have more than 90 sets various production equipments, CNC machine tools, Plasma Cutting Machine and Flame Cutting, Machine, Wire-electrode Cutting Machine, Fully-automatic Milling Machine, Milling and Washing Machine, Polishing Machine, etc. to guarantee quality.

Designed workers

Different parts will be processed or manufactured by designed workers. If occur product defects, the designed workers should be responsible for it, even though machines have been delivered.

Welding

We have strictly welding demands. Welders must get National Welder Certificate.

Welding lines should be uniform. Transition should be smooth.

Painting

Before painting, we must clean rust and oxide layer on the machines thoroughly. Then paint 4 layers. After above process, machines will be protected well from rust.
