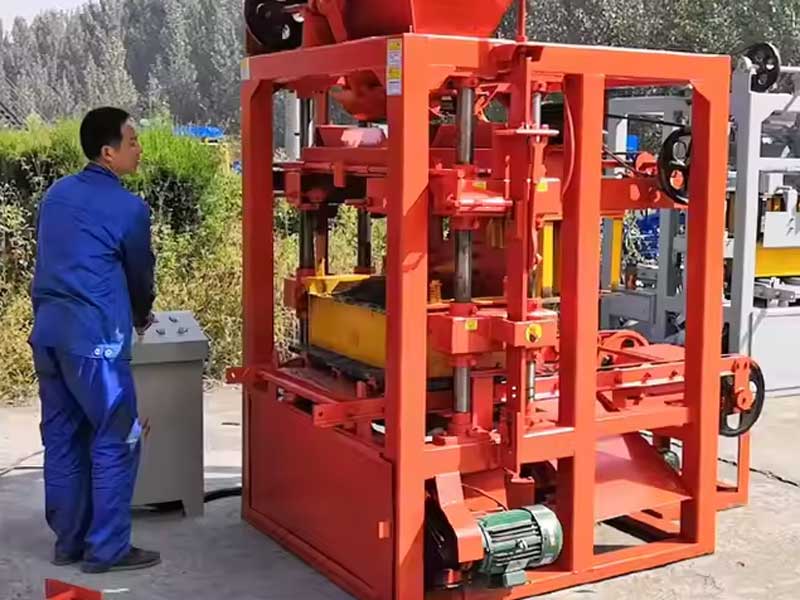

QTJ4-26 Semi-automatic Block Making Machine

Blocks can be produced：	Hollow/Solid/Paving Blocks, Kerbstone, etc.
Cycle Time：	26-30s
Production Capacity (e.g.)：	400x200x200mm: 2880-3600pcs/day(8 hours)
	400x150x200mm: 3600-4800pcs/day(8 hours)
	400x100x200mm: 5040-6720pcs/day(8 hours)
Control Mode：	Semi-automatic
Block Forming Mode：	Platform Vibration

E-mail: info@hf-industry.cn

Tel/WhatsApp: +8613663816343

QTJ4-26 Semi-automatic Block Making Machine

Production Capacity

Note: Block shapes and size can be customized

Product Features

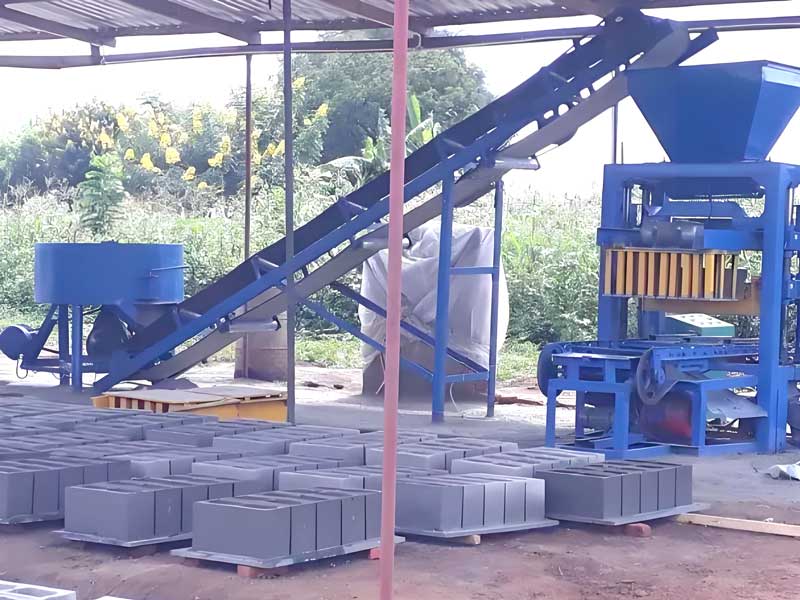

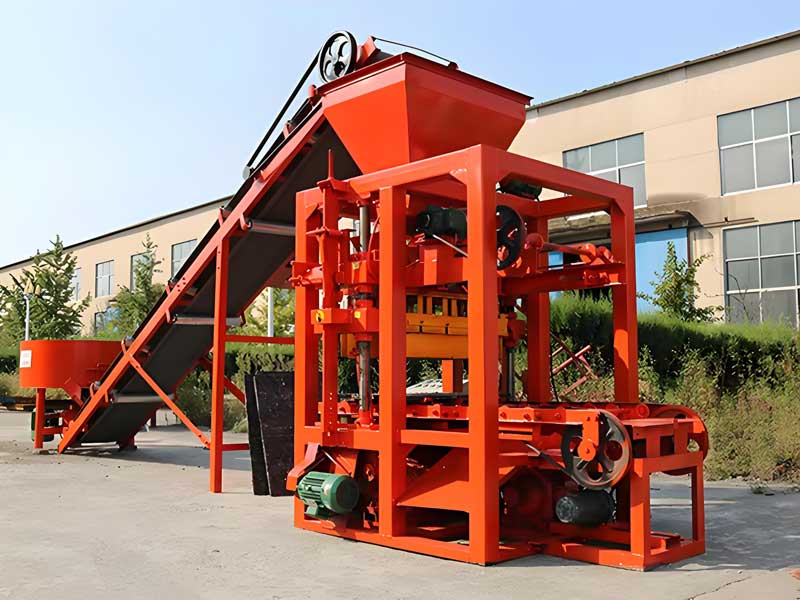

This machine, with JW350 mixer and 6m belt conveyor, makes a simple production line. QT4-26 type block forming machine, belongs to small size, is in stationery style with platform vibration. It adopts combination of being mechanical and electronic to finish kinds of action. The operation and maintenance are both easy and dependable. Block making applies platform vibrating feeding and up-down vibrating forming, which is fast and make the density and strength better. Pushing-pulling mold is automatic with electricity, which saves labor and raises the efficiency. Customers can have their own choice to either use automatic or manual material releasing way. The mold going up and down, the forming process, and vibration starting are all controlled by combination of electricity and machine, which makes the operation accurate and reduces the damage due to mis-operation.

Main Specifications

No.	Item	Specification
1	Block Forming Mode	Platform Vibration
2	Vibration Force	45 KN
3	Vibration Frequency	2800-4200 rpm
4	Production Cycle Time	26 seconds
5	Main Motors Power	14.25 kw
6	Pallet Size	850x450 mm
7	Main Machine Size	3600x1700x2560 mm
8	Blocks can be produced	Hollow/Porous/Solid/Paving/Grass-planting Block, Kerbstone, etc.

Note: Block shapes and size can be customized

Technology Advantage

High Strength Structural Steel

To produce our machines, we use high-strength structural steel. Steel rank can be Q345 – 16Mn.

Top Brands Parts

If some parts need to be ordered from others, we must choose top brands to keep quality.

Production Equipment

We have more than 90 sets various production equipments, CNC machine tools, Plasma Cutting Machine and Flame Cutting, Machine, Wire-electrode Cutting Machine, Fully-automatic Milling Machine, Milling and Washing Machine, Polishing Machine, etc. to guarantee quality.

Designed workers

Different parts will be processed or manufactured by designed workers. If occur product defects, the designed workers should be responsible for it, even though machines have been delivered.

Welding

We have strictly welding demands. Welders must get National Welder Certificate.

Welding lines should be uniform. Transition should be smooth.

Painting

Before painting, we must clean rust and oxide layer on the machines thoroughly. Then paint 4 layers. After above process, machines will be protected well from rust.
