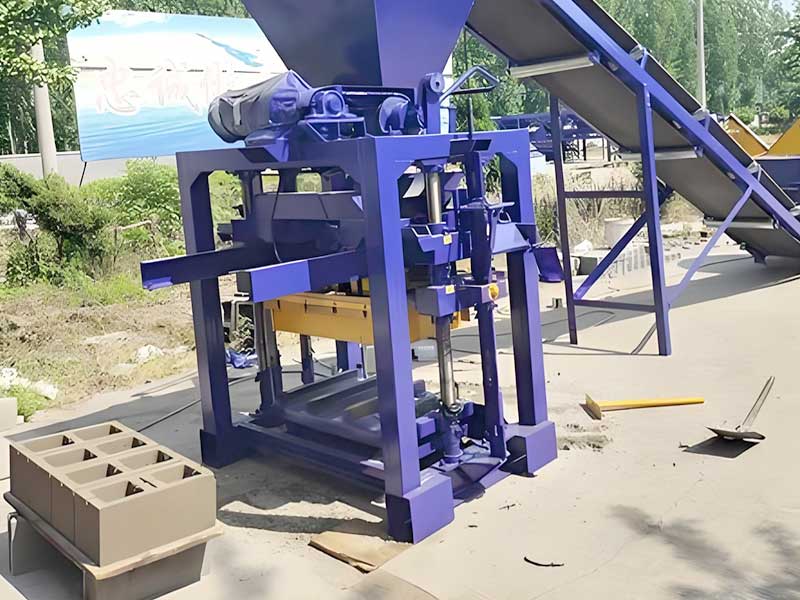

QTJ4-35 Semi-automatic Block Making Machine

Blocks can be produced：	Hollow/Solid/Paving Blocks, Kerbstone, etc.
Cycle Time：	35-40s
Production Capacity (e.g.)：	400x200x200mm: 2240-2800pcs/day(8 hours)
	400x150x200mm: 2880-3600pcs/day(8 hours)
	400x100x200mm: 4000-5040pcs/day(8 hours)
Control Mode：	Semi-automatic
Block Forming Mode：	Platform Vibration

E-mail: info@hf-industry.cn

Tel/WhatsApp: +8613663816343

QTJ4-35 Semi-automatic Block Making Machine

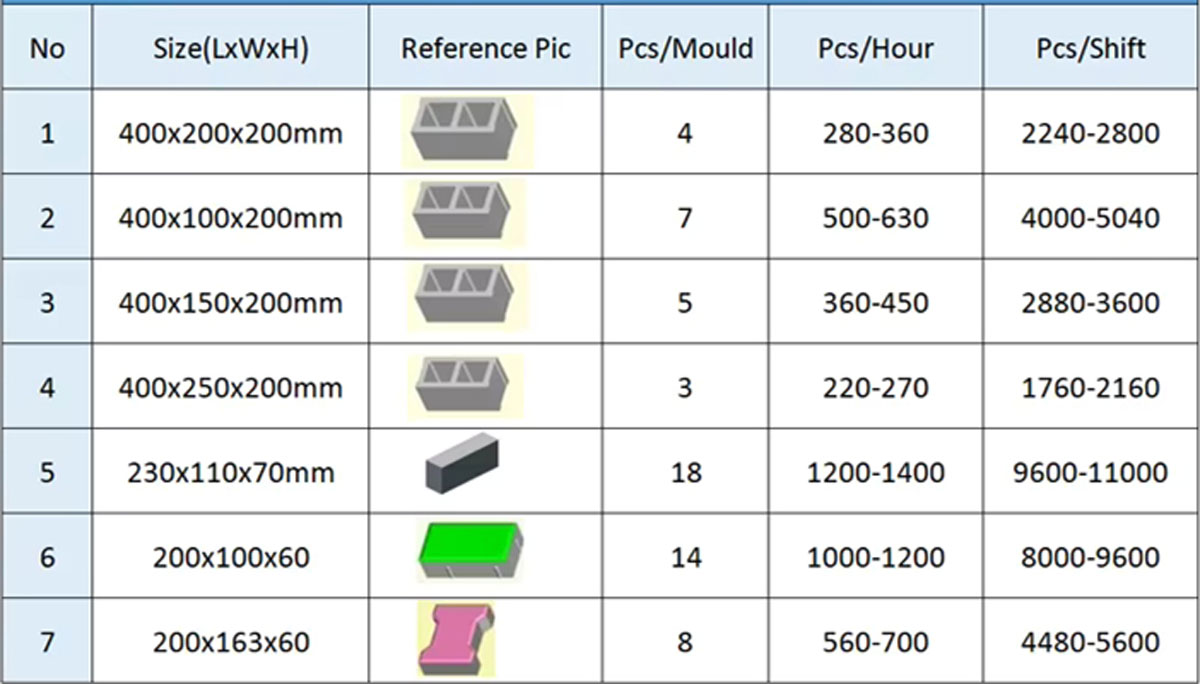

Production Capacity

Note: Block shapes and size can be customized

Product Features

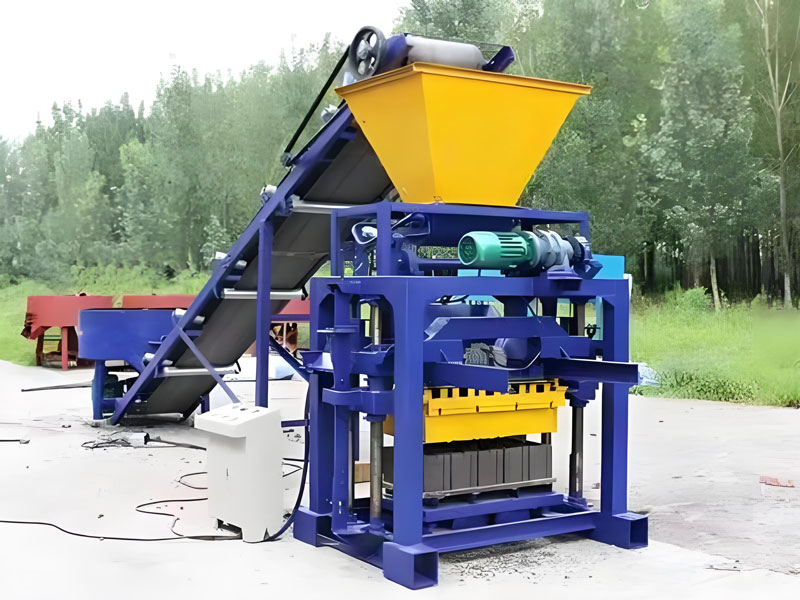

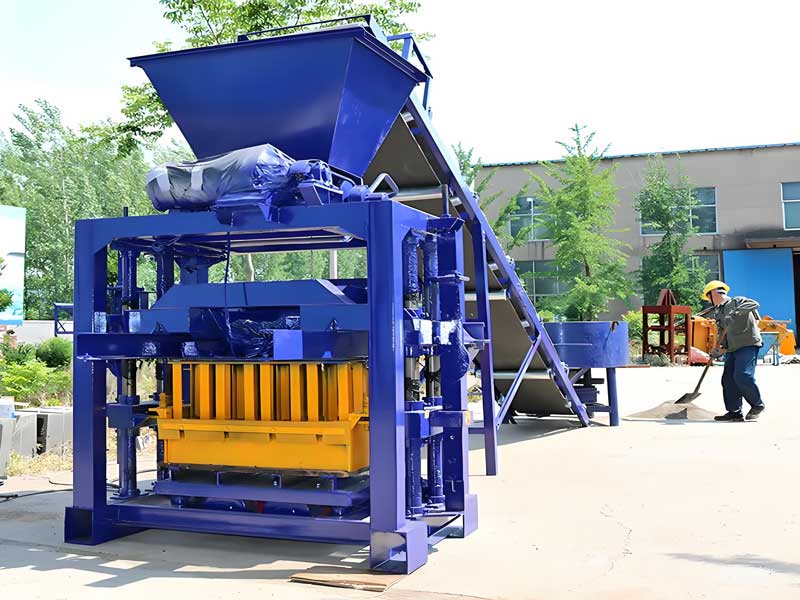

QTJ4-35 small manual moulding cheap concrete hollow block making machine for home business.

The machine adopts four-lead, channel steel stander making the equipment more stable, and super-strong vibration motor. And the upper mould with the bottom mould compression make the brick with high quality, more important, various kinds of materials can be used. Which improves the efficiency greatly.

The host machine can operated independently, it also can be operated with transmission part and JW350 concrete mixer achieve auto production.

1. The machine is designed by our factory according to the small and medium sized hollow block forming machine, in our factory.

2. The machine adopts four-lead channel steel stander making the equipment more stable.

3. The machine adopts top die push and pull, and automation scraper, which is simple to operate as well as large-scale equipment.

4. Upper mold be raised by reducer.

5. The table adopts super-strong vibration motor to make vertical and directional vibration.

6. At the beam with a pair of supper-strong vertical pressurization vibration,can ensure the good molding results .

7. The upper mold with the bottom mold compressing make the brick with good quality, large density, and high strength.

Main Specifications

No.	Item	Specification
1	Block Forming Mode	Platform Vibration
2	Vibration Force	28 KN
3	Vibration Frequency	2800 rpm
4	Production Cycle Time	35 seconds
5	Main Motors Power	9.7 kw
6	Pallet Size	850x450 mm
7	Main Machine Size	2050x1660x1900 mm
8	Blocks can be produced	Hollow/Porous/Solid/Paving/Grass-planting Block, Kerbstone, etc.

Technology Advantage

High Strength Structural Steel

To produce our machines, we use high-strength structural steel. Steel rank can be Q345 – 16Mn.

Top Brands Parts

If some parts need to be ordered from others, we must choose top brands to keep quality.

Production Equipment

We have more than 90 sets various production equipments, CNC machine tools, Plasma Cutting Machine and Flame Cutting, Machine, Wire-electrode Cutting Machine, Fully-automatic Milling Machine, Milling and Washing Machine, Polishing Machine, etc. to guarantee quality.

Designed workers

Different parts will be processed or manufactured by designed workers. If occur product defects, the designed workers should be responsible for it, even though machines have been delivered.

Welding

We have strictly welding demands. Welders must get National Welder Certificate.

Welding lines should be uniform. Transition should be smooth.

Painting

Before painting, we must clean rust and oxide layer on the machines thoroughly. Then paint 4 layers. After above process, machines will be protected well from rust.
