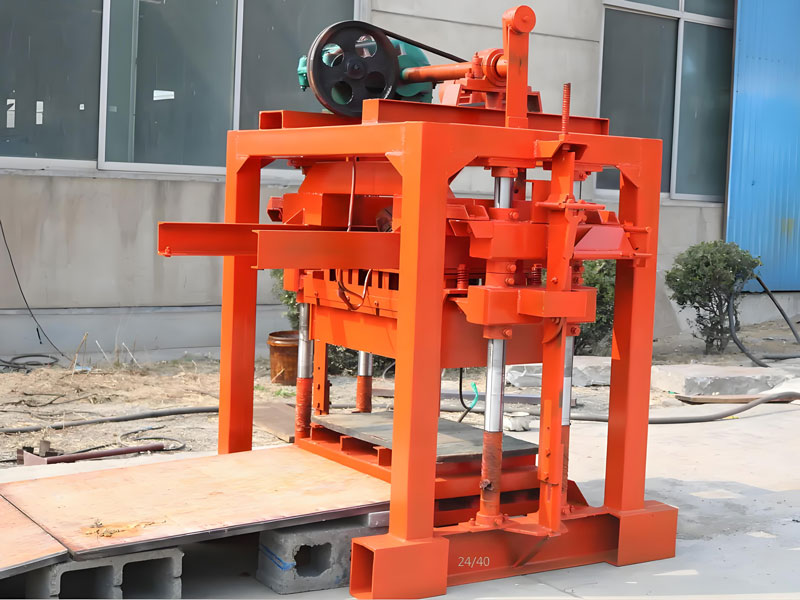

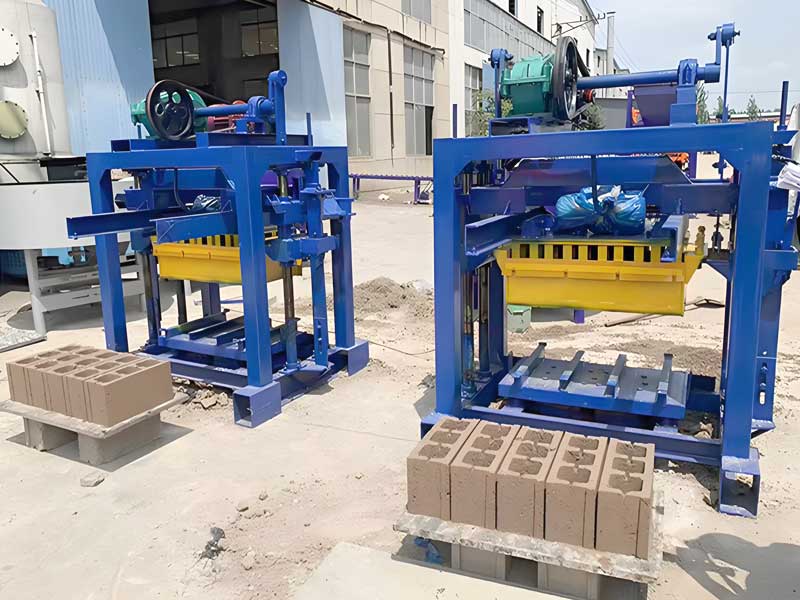

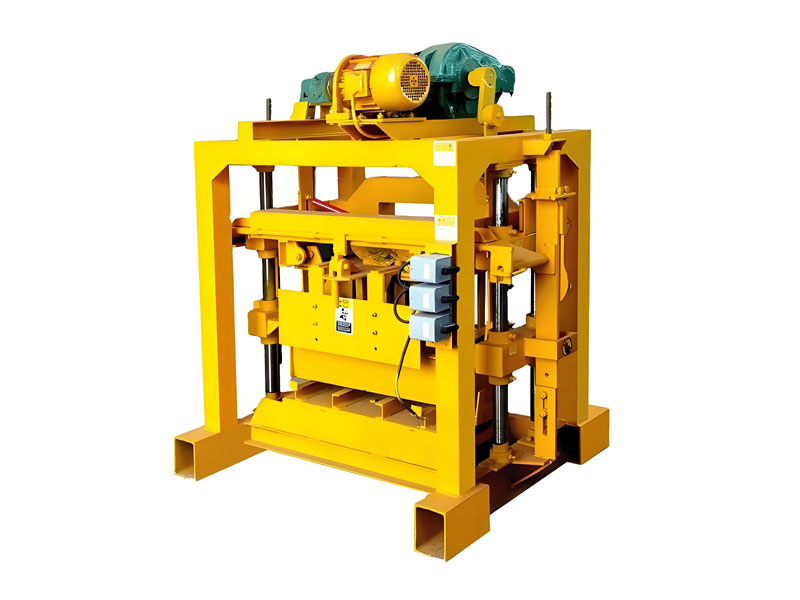

QTJ4-40 Semi-automatic Block Making Machine

Blocks can be produced：	Hollow/Solid/Paving Blocks, Kerbstone, etc.
Cycle Time：	40-45s
Production Capacity (e.g.)：	400x200x200mm: 3040-3600pcs/day(8 hours)
	400x150x200mm: 3760-4560pcs/day(8 hours)
	400x100x200mm: 5280-6240pcs/day(8 hours)
Control Mode：	Semi-automatic
Block Forming Mode：	Platform Vibration

E-mail: info@hf-industry.cn

Tel/WhatsApp: +8613663816343

QTJ4-40 Semi-automatic Block Making Machine

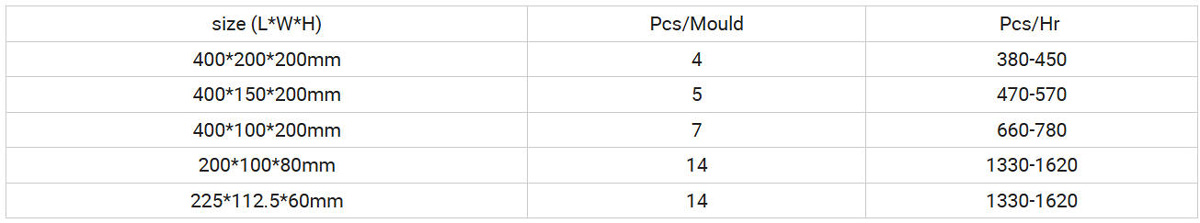

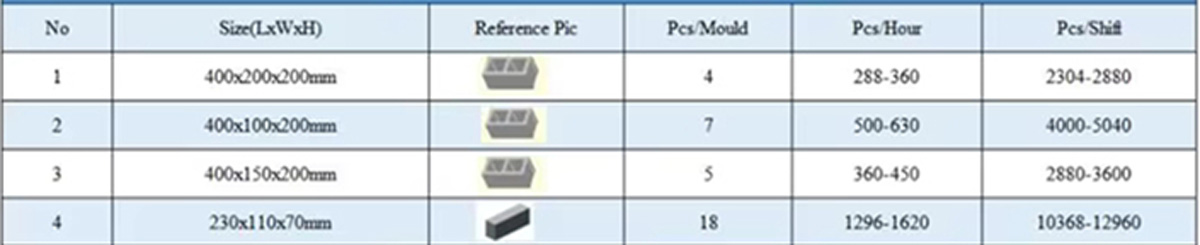

Production Capacity

Note: Block shapes and size can be customized

Product Features

Model QTJ4-40 semi-automatic concrete block forming machine is developed and manufactured on the basis of the original block forming machine and through technological innovation. It has reasonable design and excellent performance. It's equipped with strong vibration motor. The block has good quality, high density and strength. The machine adopts upper die(mold) push-pull, directly and fast scraping, convenient and easy operation, and its performance can be comparable to some big machine.

Advantages&Main Technical Parameter

› Effortless Operation: This manual cement concrete hollow solid pavers brick block making machine is designed for easy operation, allowing users to produce high-quality bricks with minimal effort and training required.

› Versatile Brick Production: QTJ4-40 can produce a variety of brick sizes, such as 390*190*190mm, 400*120*200 mm, and many others, catering to diverse construction needs and user requirements.

› Customizable Options: The machine is available in different colors and voltages (220v/380v), allowing you to choose the configuration that best suits your specific needs and preferences.

› Comprehensive After-Sales Service: Our team of engineers is available to provide on-site support and maintenance for the machine, ensuring that you receive the support you need to keep your business running smoothly, even in overseas location.

Main Specifications

No.	Item	Specification
1	Block Forming Mode	Platform Vibration
2	Vibration Force	28 KN
3	Vibration Frequency	2800 rpm
4	Production Cycle Time	45 seconds
5	Main Motors Power	9.7 kw
6	Pallet Size	850x450 mm
7	Main Machine Size	1350x1460x1800 mm
8	Blocks can be produced	Hollow/Porous/Solid/Paving/Grass-planting Block, Kerbstone, etc.

Technology Advantage

High Strength Structural Steel

To produce our machines, we use high-strength structural steel. Steel rank can be Q345 – 16Mn.

Top Brands Parts

If some parts need to be ordered from others, we must choose top brands to keep quality.

Production Equipment

We have more than 90 sets various production equipments, CNC machine tools, Plasma Cutting Machine and Flame Cutting, Machine, Wire-electrode Cutting Machine, Fully-automatic Milling Machine, Milling and Washing Machine, Polishing Machine, etc. to guarantee quality.

Designed workers

Different parts will be processed or manufactured by designed workers. If occur product defects, the designed workers should be responsible for it, even though machines have been delivered.

Welding

We have strictly welding demands. Welders must get National Welder Certificate.

Welding lines should be uniform. Transition should be smooth.

Painting

Before painting, we must clean rust and oxide layer on the machines thoroughly. Then paint 4 layers. After above process, machines will be protected well from rust.
