QT8-15 Automatic Hydraulic Block Making Machine

Blocks can be produced：	Hollow/Solid/Paving Blocks, Kerbstone, etc.
Cycle Time：	15-25s
Production Capacity (e.g.)：	400x200x200mm: 9600-11520pcs/day(8 hours)
	400x150x200mm: 12000-14400pcs/day(8 hours)
	400x100x200mm: 19200-23040pcs/day(8 hours)
Control Mode：	Automatic
Block Forming Mode：	Platform Vibration + Hydraulic Pressure

E-mail: info@hf-industry.cn

Tel/WhatsApp: +8613663816343

QT8-15 Automatic Hydraulic Block Making Machine

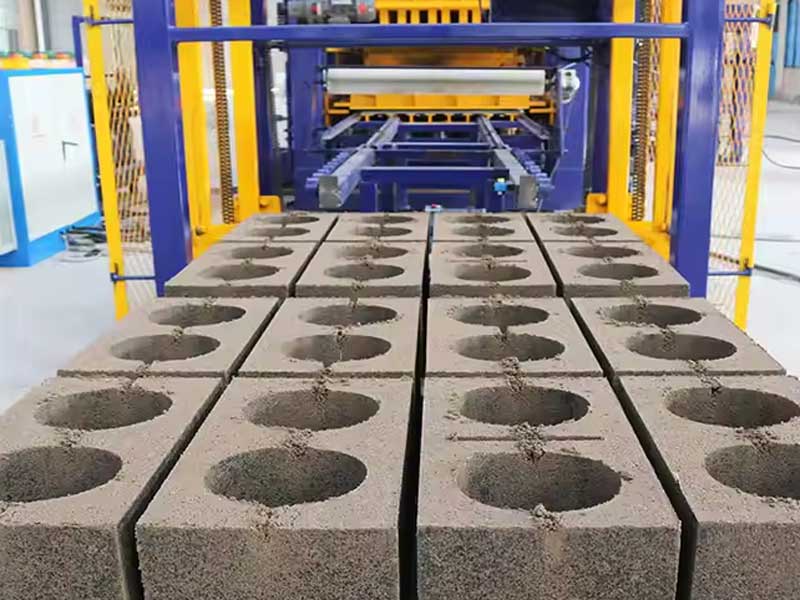

Production Capacity

Note: Block shapes and size can be customized

Product Features

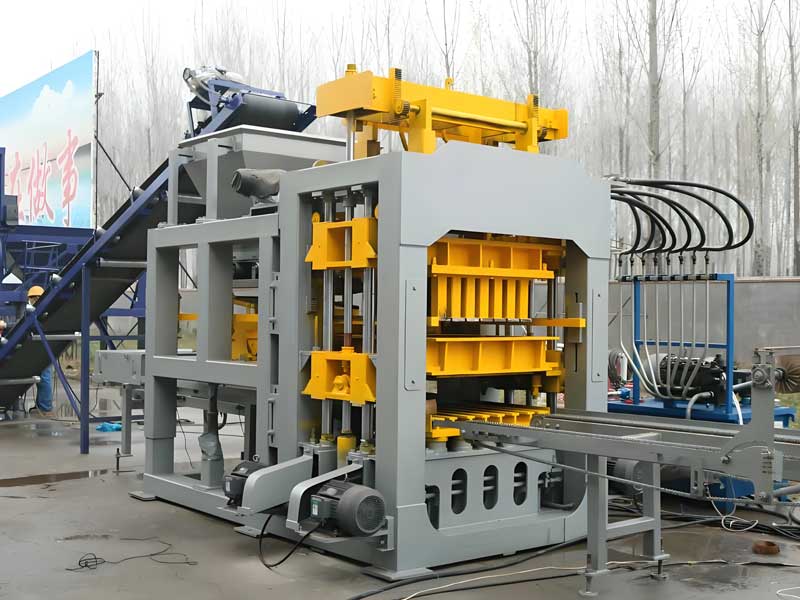

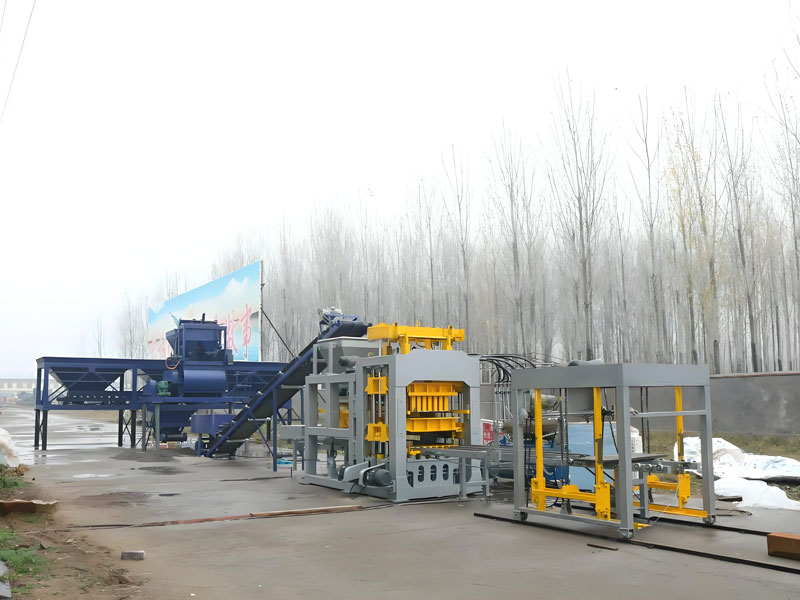

QT8-15 block making machine main frame adopts gantry frame structure, the oversized super steel manufacturing, strong resistance to vibration, good reliability. The design uses an independent foundation vehicular material storage, and send raw material timely. Mesh wave-like the swing feeding structure ,feeding effect well. Cartridge welding mold, all made of high quality manganese steel carburizing quenching. Even use 100k times, the mould can’t be out of shape and be worn. The QT8-15B can be a simple line with PLD1200 batching machine, JS500 mixer or JS750 mixer, 8m belt conveyor and stacker.

Main Specifications

No.	Item	Specification
1	Block Forming Mode	Platform Vibration + Hydraulic Pressure
2	Effective Forming Area	1145 ×680 mm
3	Vibration Force	680 kN
4	Vibration Frequency	2800-4500 rpm
5	Rated Pressure	21 Mpa
6	Production Cycle Time	15-25 seconds
7	Main Motors Power	55.5 kw
8	Pallet Size	1100x680 mm
9	Main Machine Size	8300x1860x3000mm
10	Main Machine Weight	6200 kg
11	Blocks can be produced	Hollow/Porous/Solid/Paving/Grass-planting Block, Kerbstone, etc.

Technology Advantage

High Strength Structural Steel

To produce our machines, we use high-strength structural steel. Steel rank can be Q345 – 16Mn.

Top Brands Parts

If some parts need to be ordered from others, we must choose top brands to keep quality.

Production Equipment

We have more than 90 sets various production equipments, CNC machine tools, Plasma Cutting Machine and Flame Cutting, Machine, Wire-electrode Cutting Machine, Fully-automatic Milling Machine, Milling and Washing Machine, Polishing Machine, etc. to guarantee quality.

Designed workers

Different parts will be processed or manufactured by designed workers. If occur product defects, the designed workers should be responsible for it, even though machines have been delivered.

Welding

We have strictly welding demands. Welders must get National Welder Certificate.

Welding lines should be uniform. Transition should be smooth.

Painting

Before painting, we must clean rust and oxide layer on the machines thoroughly. Then paint 4 layers. After above process, machines will be protected well from rust.
