JMQ-10A Egg Laying Block Making Machine
JMQ-10A Egg Laying Block Making Machine
| Blocks can be produced： | Hollow/Solid/Paving Blocks, Kerbstone, etc. |
| Cycle Time： | 20-30s |
| Production Capacity (e.g.)： | 400x200x200mm: 12000-14400pcs/day(8 hours) |
| 400x150x200mm: 16800-20000pcs/day(8 hours) | |
| 400x100x200mm: 21600-25920pcs/day(8 hours) | |
| Block Forming Mode： | Vibration + Pressure |
E-mail: info@hf-industry.cn
Tel/WhatsApp: +8613663816343
Product detail
JMQ-10A Egg Laying Block Making Machine

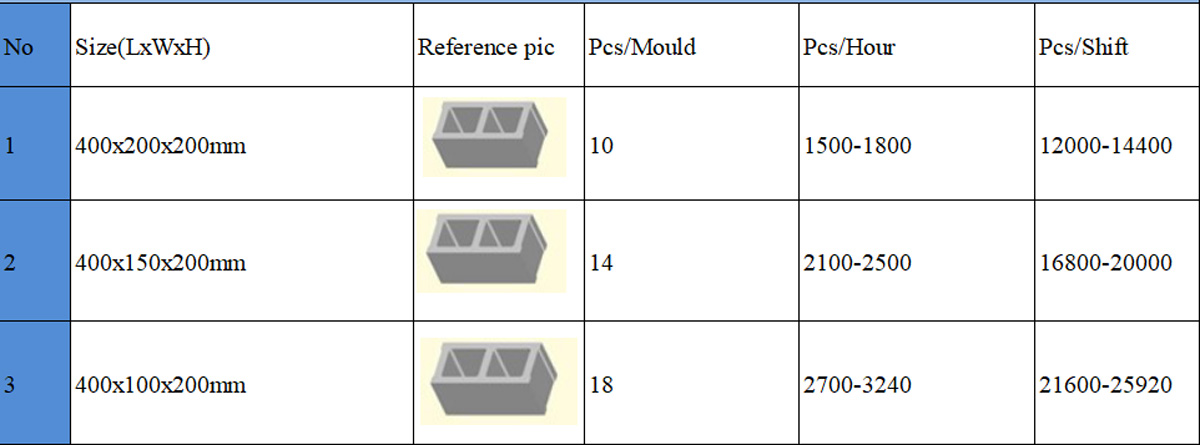

Production Capacity
Note: Block shapes and size can be customized
Product Features
1. JMQ-10A block machine has large productivity, this kind of brick machine is manufactured on the base of technical modifications to the original block shaping machines,that is changing the former one-time-vibration into twice-time-vibrations of molding core. so the block density becomes higher,shaping speed quicker,and block strength more even.this model of machine can be suitable to the customers who have any kinds of existing cement working sites.
2. JMQ-10A block machine advanced techniques made the host machine designed reasonly, and achieved box vibration,hydraulic stripping,omnidirectional automatically movement,QMJ-10A work faster because of automatically feeding system,high quality of steel and precision welding made the machine a longer service life and hydraulic system made less fault during work.
3. JMQ-10A block machine has several function features,such as low price,reliable performance,easy operated,stable,lower power consumption (just one sixth power consumption of the machine which have the same output).mass raw material can be used during production, for concrete,cement,small stone,powder, sand, coal gangue, slag, construction waste and so on.
Main Specifications
| No. | Item | Specification |
| 1 | Block Forming Mode | Vibration + Pressure |
| 2 | Demoulding Method | Hydraulic |
| 3 | Turning Method | Hydraulic |
| 4 | Hydraulic Pressure | 16-21 Mpa |
| 5 | Vibration Form | Mould Vibration |
| 6 | Production Cycle Time | 20-30 seconds |
| 7 | Main Motors Power | 11.5 kw |
| 8 | Pallet Size | No need pallet |
| 9 | Blocks can be produced | Hollow/Porous/Paving/Solid Block, Kerbstone, etc. |
Technology Advantage
| High Strength Structural Steel
To produce our machines, we use high-strength structural steel. Steel rank can be Q345 – 16Mn.
|
Top Brands Parts
If some parts need to be ordered from others, we must choose top brands to keep quality. |
Production Equipment
We have more than 90 sets various production equipments, CNC machine tools, Plasma Cutting Machine and Flame Cutting, Machine, Wire-electrode Cutting Machine, Fully-automatic Milling Machine, Milling and Washing Machine, Polishing Machine, etc. to guarantee quality. |
| Designed workers
Different parts will be processed or manufactured by designed workers. If occur product defects, the designed workers should be responsible for it, even though machines have been delivered.
|
Welding
We have strictly welding demands. Welders must get National Welder Certificate. Welding lines should be uniform. Transition should be smooth.
|
Painting
Before painting, we must clean rust and oxide layer on the machines thoroughly. Then paint 4 layers. After above process, machines will be protected well from rust.
|
