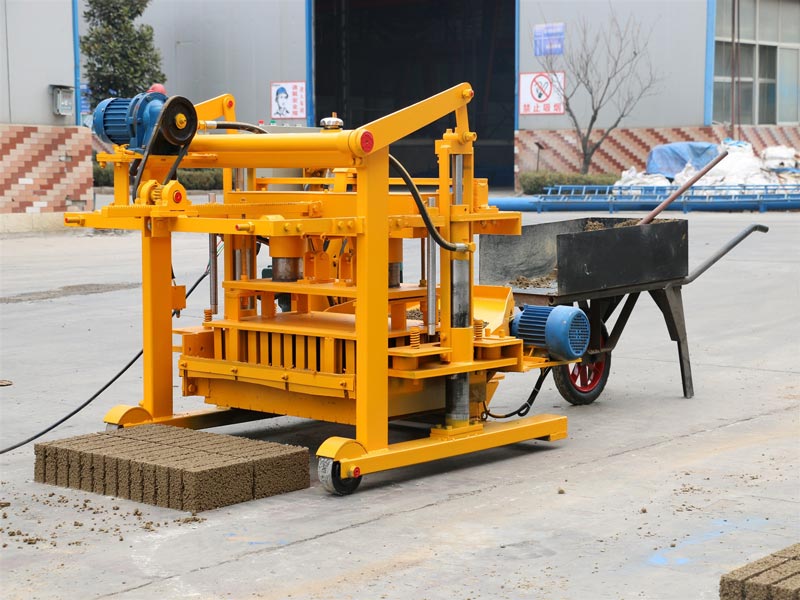

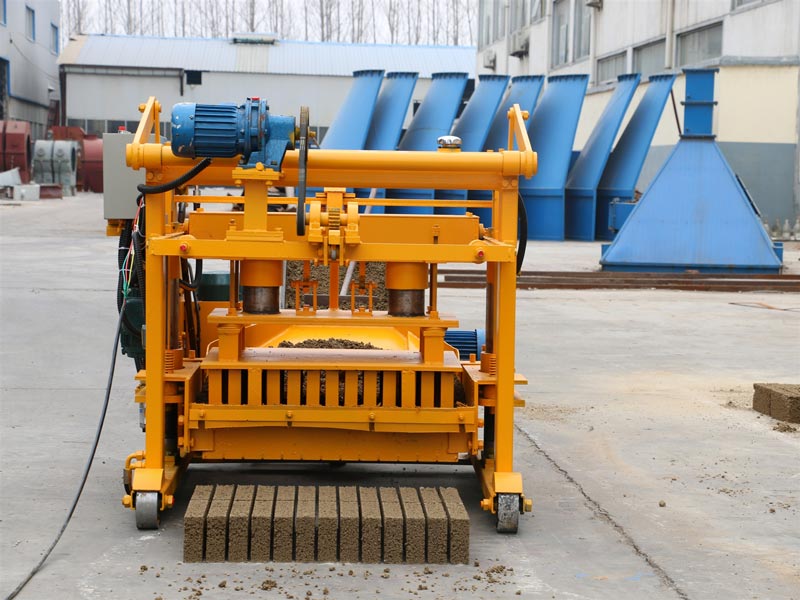

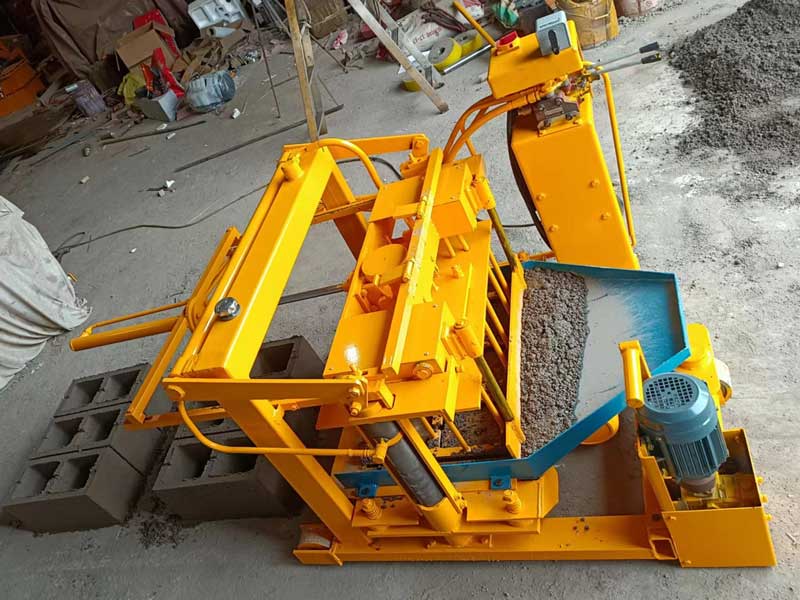

QTY4-30 Egg Laying Block Making Machine

Blocks can be produced：	Hollow/Solid/Paving Blocks, Kerbstone, etc.
Cycle Time：	30-35s
Production Capacity (e.g.)：	400x200x200mm: 2600pcs/day(8 hours)
	400x150x200mm: 3200pcs/day(8 hours)
	400x100x200mm: 7200pcs/day(8 hours)
Block Forming Mode：	Vibration + Pressure

E-mail: info@hf-industry.cn

Tel/WhatsApp: +8613663816343

QTY4-30 Egg Laying Block Making Machine

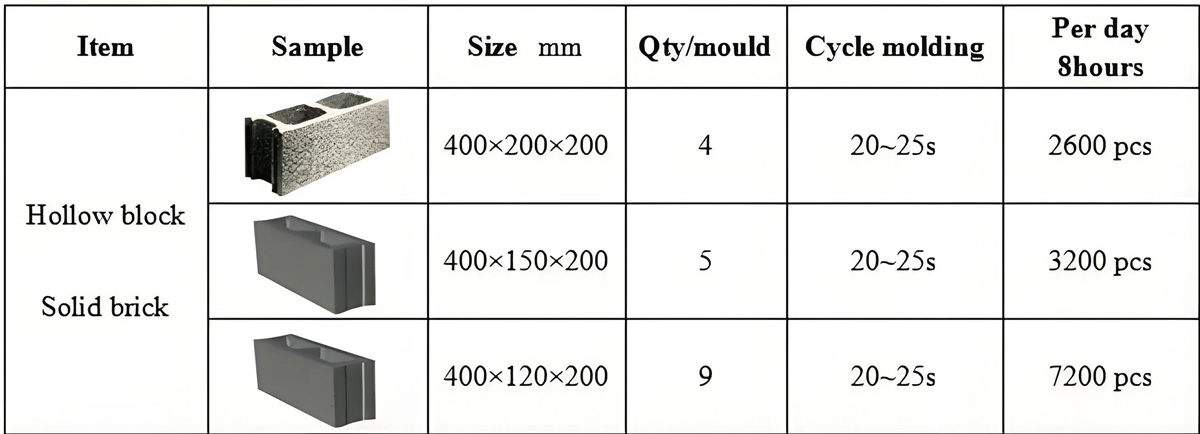

Production Capacity

Note: Block shapes and size can be customized

Product Features

1. QTY4-30 Type Hydraulic ground mould mobile brick machine, is one kind of new production of our company that synthesizing the advantage of both hydraulic and machinery, meeting the requirement of customer from the target market of oversea, basing at the principle of smaller investment with higher machinery property and it is specifically for the oversea market sale.

2. The hydraulic system and the machinery system of this equipment supplement each other and the operating of it is very simple. It can make the production of bricks without pallet, so it save the investment of pallet purchasing.

3. The major vibration form of it is mould vibration, who can make super vibration influence with small power .With the pressure of hydraulic system, it makes the raw material adding adequately and compacting adequately. The production of it could compare favourably with the production produced by the larger hydraulic machine.

4. It can produce various kind of concrete production by easily changing the mould.

Main Specifications

Forming Cycle	30-35 seconds
Vibration frequency	4500r/min
Exciting power	28.6 KN
Overall power	5.95kw
Overall dimension	130015001000mm
Molding form	Vibration and Pressure
Main vibration form	Mould Vibration
Blocks can be produced	Hollow/Porous/Solid Block, Kerbstone, etc.

Technology Advantage

High Strength Structural Steel

To produce our machines, we use high-strength structural steel. Steel rank can be Q345 – 16Mn.

Top Brands Parts

If some parts need to be ordered from others, we must choose top brands to keep quality.

Production Equipment

We have more than 90 sets various production equipments, CNC machine tools, Plasma Cutting Machine and Flame Cutting, Machine, Wire-electrode Cutting Machine, Fully-automatic Milling Machine, Milling and Washing Machine, Polishing Machine, etc. to guarantee quality.

Designed workers

Different parts will be processed or manufactured by designed workers. If occur product defects, the designed workers should be responsible for it, even though machines have been delivered.

Welding

We have strictly welding demands. Welders must get National Welder Certificate.

Welding lines should be uniform. Transition should be smooth.

Painting

Before painting, we must clean rust and oxide layer on the machines thoroughly. Then paint 4 layers. After above process, machines will be protected well from rust.
